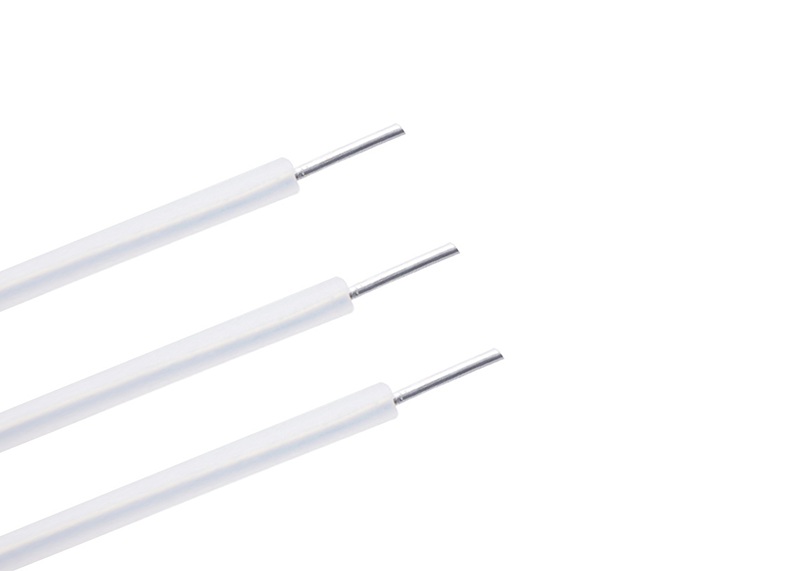

Technical Parameters
- Rating Temperature：-15℃∽＋70℃
- Conductor：Annealed copper, silver plated conductor, Aluminum wire
- Insulation：（PE）
- Color：white, red, yellow, green, black etc.
- Application：This product has very excellent voltage resistance performance, small wire diameter; According to customer requirements to produce different specifications, different pressure level products; This product is widely used in non - high temperature environment high voltage connection line; High pressure neon lights and other lamps; In electronic circuits used in long-term high voltage environment; Can meet AC, DC or pulse power supply lines
|
Section Area (mm2) |
Construction （No./mm） |
Overall Diameter (mm) |
Resistance at 20℃ (≤Ω/km) |
||
|
10KVDC |
15KVDC |
20KVDC |
|||
|
0.20 |
7/0.20 |
2.80 |
3.60 |
4.20 |
90.40 |
|
0.20 |
19/0.12 |
2.80 |
3.60 |
4.20 |
93.80 |
|
0.35 |
7/0.26 |
2.98 |
3.78 |
4.38 |
53.50 |
|
0.35 |
19/0.16 |
3.00 |
3.80 |
4.40 |
53.10 |
|
0.50 |
7/0.30 |
3.10 |
3.90 |
4.50 |
36.70 |
|
0.50 |
19/0.18 |
3.10 |
3.90 |
4.50 |
36.70 |
|
0.75 |
19/0.23 |
3.35 |
4.15 |
4.75 |
24.60 |
|
0.75 |
7/0.40 |
3.40 |
4.20 |
4.80 |
24.60 |
|
1.00 |
19/0.26 |
3.90 |
4.70 |
5.30 |
20.40 |
|
1.35 |
19/0.30 |
4.10 |
4.90 |
5.50 |
16.30 |
|
1.50 |
19/0.32 |
4.20 |
5.00 |
5.60 |
12.70 |
|
2.00 |
19/0.37 |
4.85 |
5.65 |
6.25 |
10.00 |
|
2.50 |
19/0.41 |
5.05 |
5.85 |
6.45 |
7.43 |
|
4.00 |
37/0.37 |
5.59 |
6.39 |
7.00 |
4.88 |
|
Remarks: able to produce as customer’s requirement |
|||||
