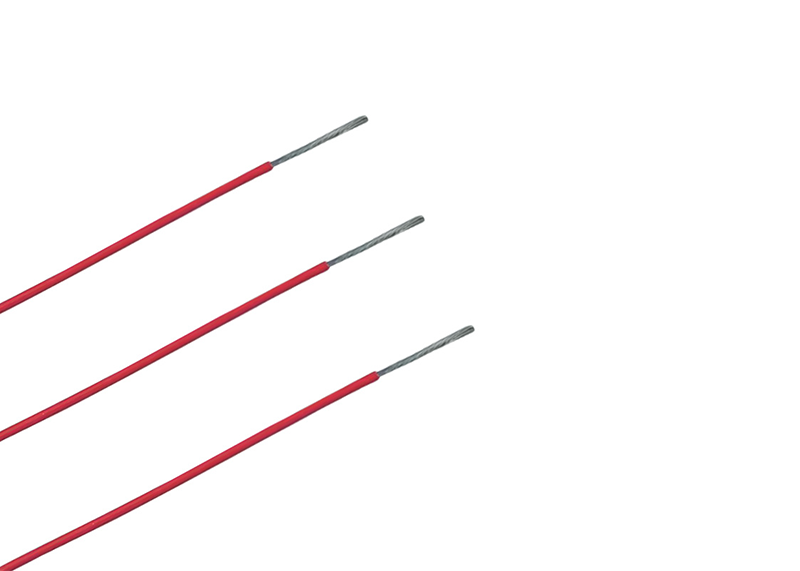

Technical Parameters
- Rated Temperature：-80℃∽+200℃
- Rated Voltage：300V
- Conductor：30AWG-10AWG solid or stranded
- Insulation：FEP(F46) Teflon
- Colors: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate: tested and approved by UL, UL file No.: E311865
- Application: widely used in electronic appliances, lighting, instrumentation etc.
|
AWG |
Section (mm2) |
Conductor No./ Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. （mm） |
Max. Resistance 20℃（≤Ω/km） |
|
30 |
0.05 |
7/0.10 |
0.33 |
0.46 |
0.96 |
381 |
|
1/0.254 |
0.33 |
0.46 |
0.914 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.33 |
0.46 |
1.02 |
239 |
|
1/0.32 |
0.33 |
0.46 |
0.98 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.33 |
0.46 |
1.14 |
150 |
|
1/0.41 |
0.33 |
0.46 |
1.07 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.33 |
0.46 |
1.26 |
94.2 |
|
1/0.50 |
0.33 |
0.46 |
1.16 |
89.3 |
||
|
22 |
0.33 |
1/0.65 |
0.33 |
0.46 |
1.31 |
56.4 |
|
19/0.16 |
0.33 |
0.46 |
1.46 |
59.4 |
||
|
20 |
0.5 |
1/0.80 |
0.33 |
0.46 |
1.46 |
35.2 |
|
19/0.20 |
0.33 |
0.46 |
1.61 |
36.7 |
||
|
18 |
0.8 |
7/0.40 |
0.33 |
0.46 |
1.61 |
20.8 |
|
19/0.23 |
0.33 |
0.46 |
1.81 |
23.2 |
||
|
17 |
1.0 |
19/0.26 |
0.33 |
0.46 |
1.96 |
18.3 |
|
16 |
1.3 |
19/0.30 |
0.33 |
0.46 |
2.16 |
14.6 |
|
14 |
2.0 |
19/0.37 |
0.33 |
0.46 |
2.51 |
8.96 |
|
12 |
3.3 |
19/0.49 |
0.33 |
0.46 |
3.11 |
5.64 |
|
10 |
5.3 |
37/0.43 |
0.33 |
0.46 |
3.67 |
3.546 |
|
Remarks: able to produce according to customer’s requirements |
||||||
