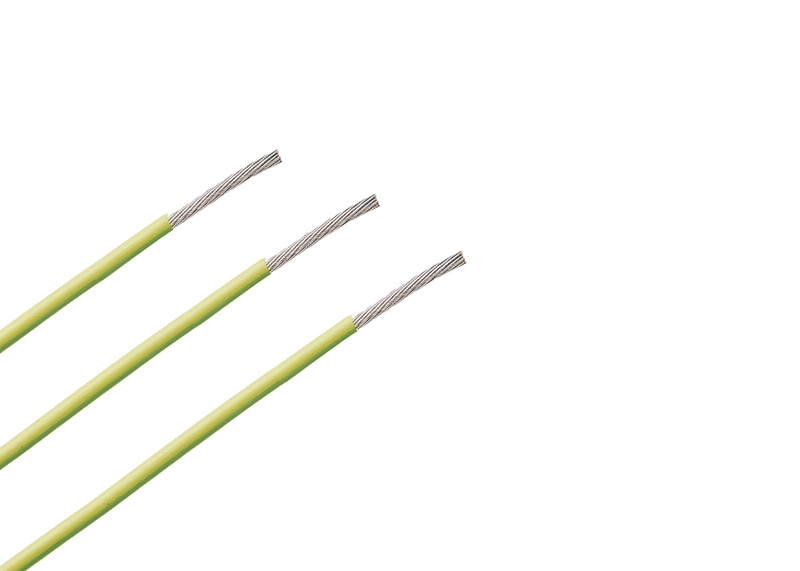

Technical Parameters
- Rated Temperature：-80℃∽+105℃
- Rated Voltage：NOT SPECIFIED
- Conductor：36AWG-64AWG solid or stranded Tinned copper
- Insulation：FEP(F46) Teflon
- Colors: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate: tested and approved by UL, UL file No.: E311865
- Application: widely used in electronic appliances, lighting, instrumentation etc.
|
AWG |
Section |
Conductor No./ Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. （mm） |
Max. Resistance 20℃（≤Ω/km） |
|
36 |
0.014 |
7/0.05 |
0.14 |
0.125 |
0.43 |
1500.98 |
|
34 |
0.02 |
1/0.16 |
0.14 |
0.125 |
0.44 |
910.45 |
|
32 |
0.03 |
7/0.08 |
0.14 |
0.125 |
0.52 |
664.8 |
|
1/0.20 |
0.14 |
0.125 |
0.48 |
588.3 |
||
|
30 |
0.05 |
7/0.10 |
0.14 |
0.125 |
0.58 |
381 |
|
1/0.254 |
0.14 |
0.125 |
0.534 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.14 |
0.125 |
0.64 |
239 |
|
1/0.32 |
0.14 |
0.125 |
0.60 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.14 |
0.125 |
0.76 |
150 |
|
1/0.41 |
0.14 |
0.125 |
0.69 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.14 |
0.125 |
0.88 |
94.2 |
|
1/0.50 |
0.14 |
0.125 |
0.78 |
89.3 |
||
|
22 |
0.33 |
1/0.65 |
0.14 |
0.125 |
0.93 |
56.4 |
|
19/0.16 |
0.14 |
0.125 |
1.08 |
59.4 |
||
|
20 |
0.5 |
1/0.80 |
0.14 |
0.125 |
1.08 |
35.2 |
|
19/0.20 |
0.14 |
0.125 |
1.23 |
36.7 |
||
|
18 |
0.8 |
7/0.40 |
0.20 |
0.178 |
1.60 |
20.8 |
|
19/0.23 |
0.20 |
0.178 |
1.55 |
23.2 |
||
|
16 |
1.3 |
19/0.30 |
0.20 |
0.178 |
1.90 |
14.6 |
|
14 |
2.0 |
19/0.37 |
0.33 |
0.305 |
2.51 |
8.96 |
|
12 |
3.3 |
19/0.49 |
0.33 |
0.305 |
3.11 |
5.64 |
|
10 |
5.3 |
37/0.43 |
0.33 |
0.305 |
3.67 |
3.546 |
|
Remarks: more AWG available, pls consult us |
||||||
